Sensor - Pressure Tube (Pedestrian Protection) - Remove and Replace: Remove
- Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
- Remove the front the bumper beam foam. See FOAM - BUMPER BEAM - FRONT (REMOVE AND REPLACE) .

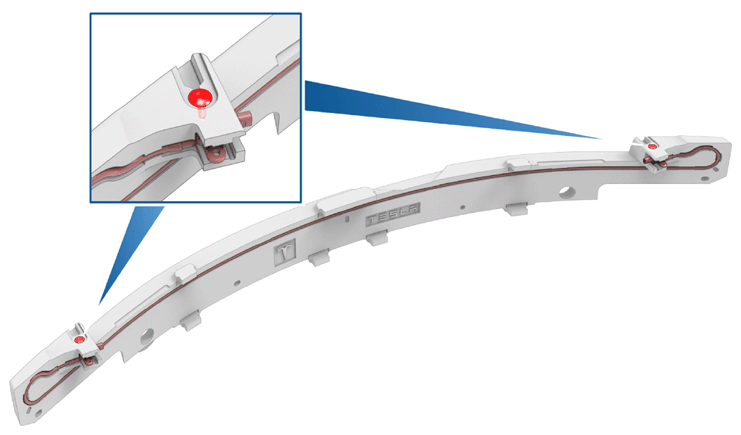

- Release the clips (x2) that attach the LH and RH pedestrian protection pressure tube sensors to the front bumper beam foam, and then remove the pressure tube from the foam.
