Cover - Hinge - Active Hood - LH - Remove and Replace: Remove

  1. Open the LH front door.
  2. Lower the LH front window.
  3. Open the hood.
  4. Remove the LH hood hinge cover.

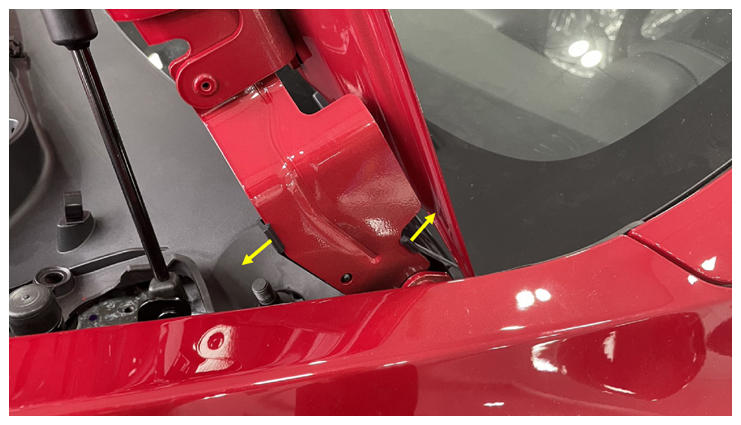

    LH hood hinge cover shown, RH similar

    G14748113Courtesy of TESLA, INC.

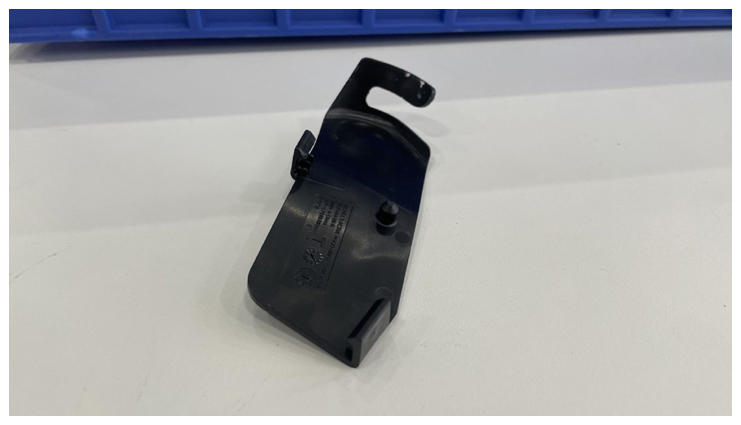

    G14748114Courtesy of TESLA, INC.
