Steering Rack (LHD) (3rd Generation) - Remove And Replace: Removal

Remove the front subframe assembly. See SUBFRAME ASSEMBLY - FRONT - 2ND GENERATION (REMOVE AND INSTALL) .
Remove the front stabar assembly from the subframe.

Courtesy of TESLA, INC.

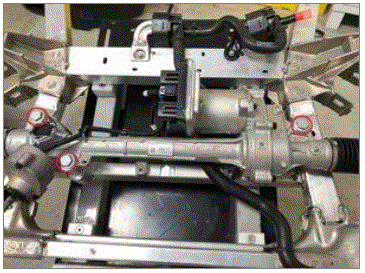

Remove the bolts (x3) that attach the steering gear assembly to the front subframe.
Use of the following tool(s) is recommended:
- 21 mm socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
