Connector End View - X397 (Fremont: 07/01/2017 - 07/10/2018)

Tesla Part Number  1047679-00-A

Connector  AMP 1-1456426-6

Color  BN

Connector Location:

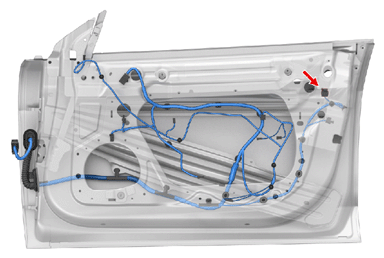

Fig 1: Connector Component Location - X397 (Fremont: 07/01/2017 - 07/10/2018)
G16613743Courtesy of TESLA, INC.

Connector Pinout:

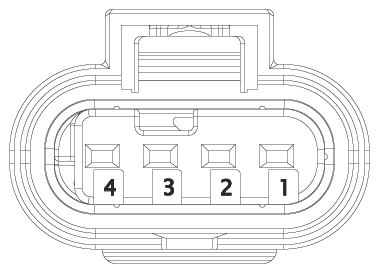

Fig 2: Connector End View - X397 (Fremont: 07/01/2017 - 07/10/2018)
G16613744Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 AMP 1418844-1 1.2x0.6FS BK 0.35 AMP 967067-2
2 AMP 1418844-1 1.2x0.6FS BU 0.35 AMP 967067-2 X053 12
3 unused
4 AMP 1418844-1 1.2x0.6FS GN 0.35 AMP 967067-2 X053 4
