Connector End View - X809 (Fremont: 07/11/2018 - 01/04/2019)

Tesla Part Number  1058577-08-A

Connector  ROSENBERGER 59Z118-C00-I

Color  BG

Connector Location:

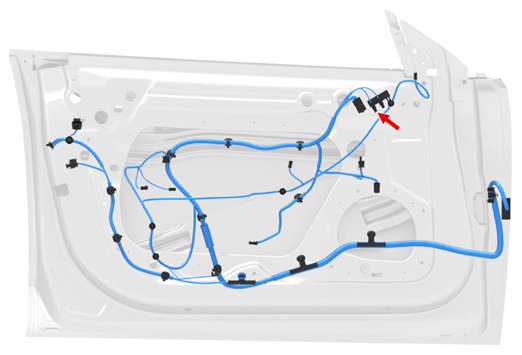

Fig 1: Connector Component Location - X809 (Fremont: 07/11/2018 - 01/04/2019)
G16617761Courtesy of TESLA, INC.

Connector Pinout:

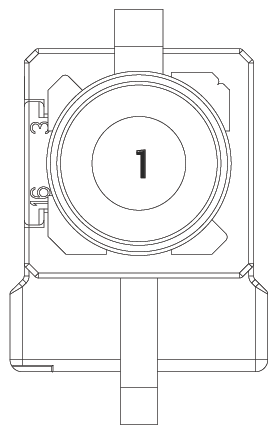

Fig 2: Connector End View - X809 (Fremont: 07/11/2018 - 01/04/2019)
G16617762Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 unused
