Connector End View - X652 (Fremont: 01/05/2019 - 06/04/2019)

Tesla Part Number  1015115-00-A

Connector  AMP 936119-1

Color  BK

Connector Location:  Currently not available

Connector Pinout:

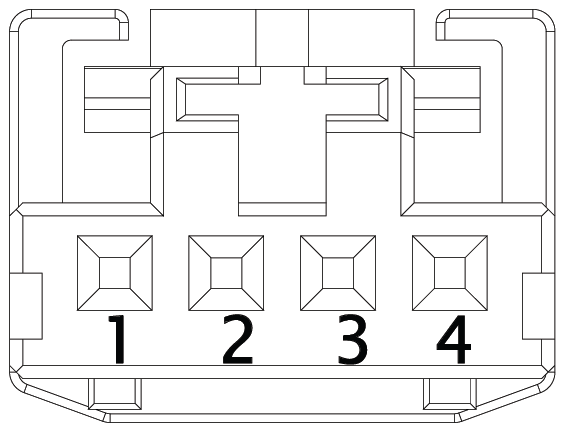

Fig 1: Connector End View - X652 (Fremont: 01/05/2019 - 06/04/2019)
G16618504Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 AMP 1355717-1 0.63x0.63F YE 0.13     X052 45
2 AMP 1355717-1 0.63x0.63F GN 0.13     X052 44
3 AMP 1355717-1 0.63x0.63F YE 0.13     X052 22
4 AMP 1355717-1 0.63x0.63F BU 0.13     X052 20
