Connector End View - X020 (Fremont: 01/05/2019 - 06/04/2019)

Tesla Part Number  1097394-00-B

Connector  CPT KCRT1286-0202AA

Color  Currently not available

Connector Location:

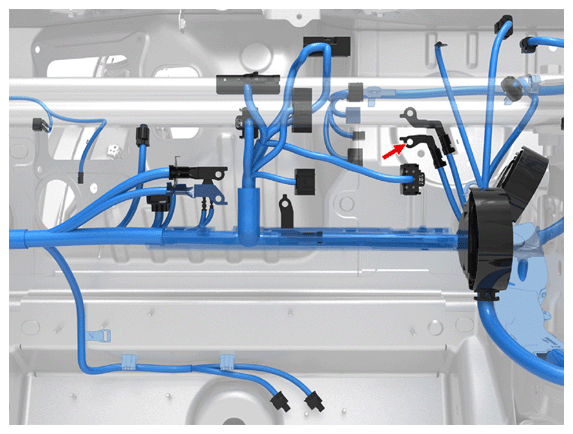

Fig 1: Connector Component Location - X020 (Fremont: 01/05/2019 - 06/04/2019)
G16617980Courtesy of TESLA, INC.

Connector Pinout:  Currently not available

Connector Details:  Currently not available
