Connector End View - X261 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Tesla Part Number 1496688-00-A
Connector DELPHI 35126369
Color BK
Connector Location:

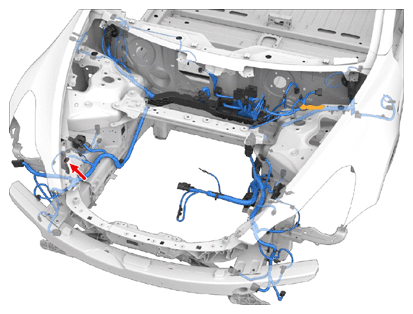

Fig 1: Connector Component Location - X261 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Pinout:
Fig 2: Connector End View - X261 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Details:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452671-1 | 1.2x0.6FS | RD | 1.00 | AMP | 967067-1 | X013 | 7 |
| 2 | AMP | 2141970-1 | 1.2x0.6FS | GN | 0.13 | AMP | 967067-2 | X013 | 8 |
| 3 | AMP | 7-1452671-1 | 1.2x0.6FS | BK | 1.00 | AMP | 967067-1 | G012 | 2 |
