Connector End View - X577 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Tesla Part Number 1075244-00-A
Connector YAZAKI 7283-6444-60
Color GN
Connector Location:

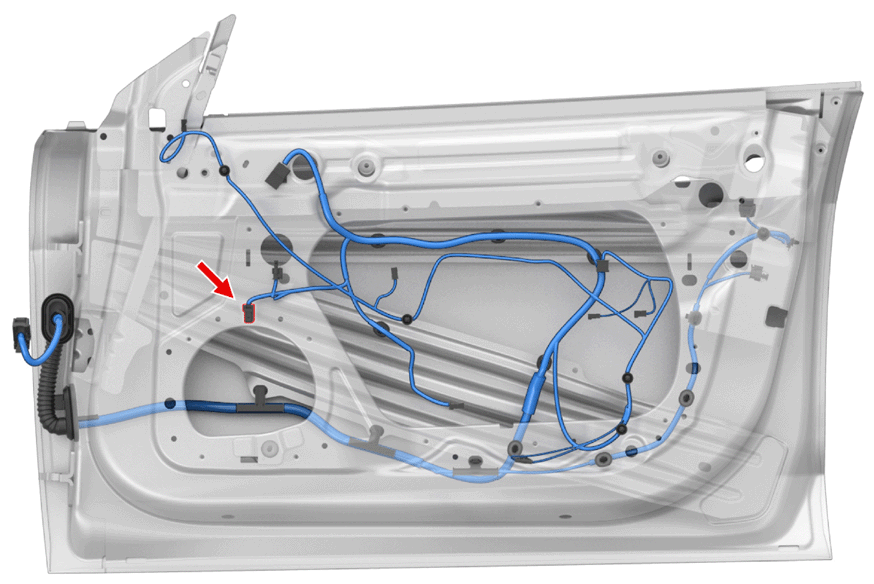

Fig 1: Connector Component Location - X577 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Pinout:
Fig 2: Connector End View - X577 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Details:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4781-02 | 1.5x0.8F | OG | 1.00 | X053 | 22 | ||
| 2 | YAZAKI | 7116-4781-02 | 1.5x0.8F | BK | 1.00 | X053 | 21 |
