Connector End View - X954F (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Tesla Part Number 1042578-00-A
Connector SUMITOMO 6098-3909
Color WH
Connector Location:

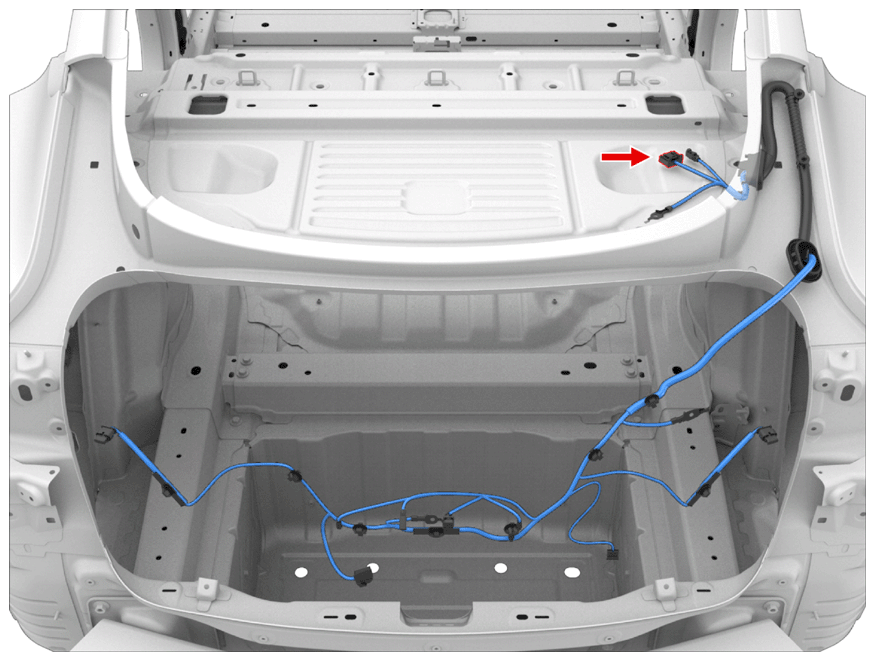

Fig 1: Connector Component Location - X954F (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Pinout:

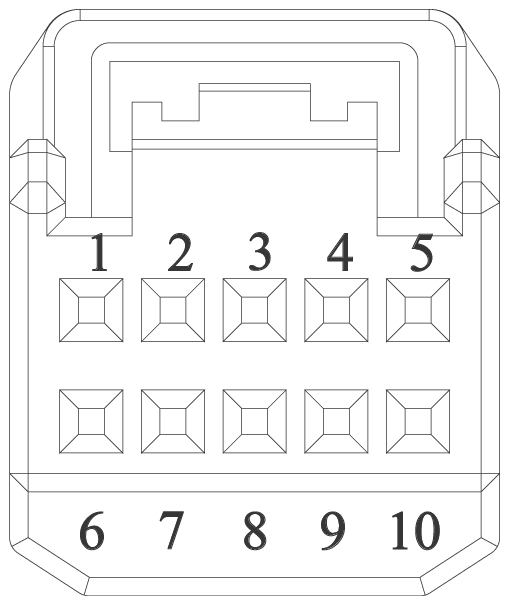

Fig 2: Connector End View - X954F (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Details:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.35 | X271 | 3 | ||
| 3 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE | 0.35 | ||||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.35 | X273 | 3 | ||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.35 | ||||
| 6 | unused | ||||||||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | OG | 0.35 | X341 | 3 | ||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.35 | X341 | 1 | ||
| 9 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X347 | 1 | ||
| 10 | unused | ||||||||
