Body Controller Front J4 - Wiring Diagram (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)

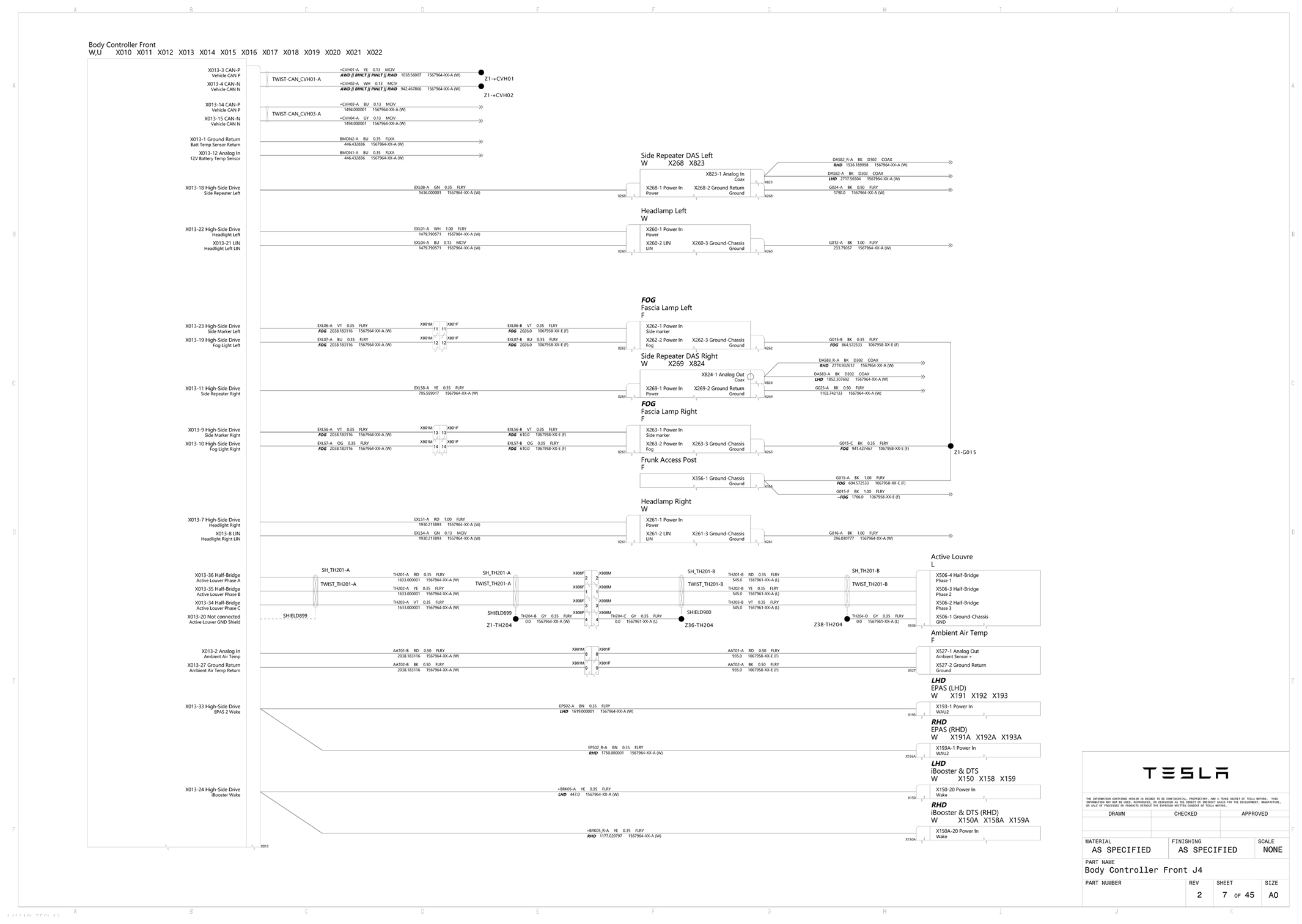

Fig 1: Body Controller Front J4 - Wiring Diagram (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
G16612290Courtesy of TESLA, INC.
