Connector End View - X193 (Fremont: 01/05/2019 - 06/04/2019)

Tesla Part Number 1078969-00-A

Connector AMP 1-1718644-1

Color BK

Connector Location:

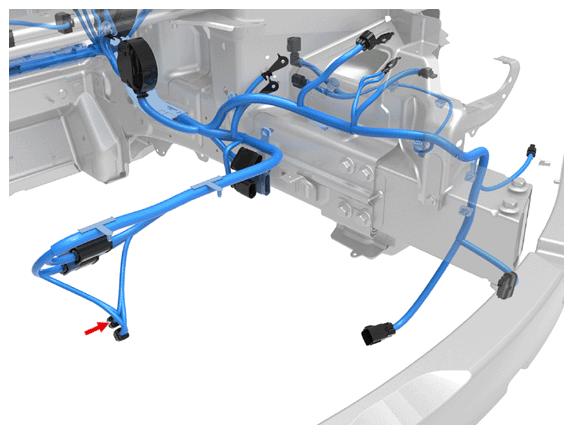

Fig 1: Connector Component Location - X193 (Fremont: 01/05/2019 - 06/04/2019)

Courtesy of TESLA, INC.

Connector Pinout:

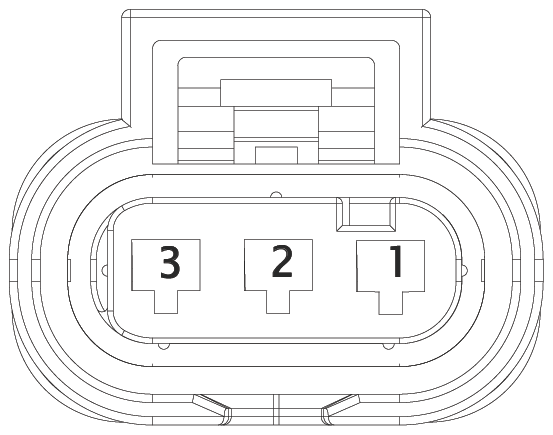

Fig 2: Connector End View - X193 (Fremont: 01/05/2019 - 06/04/2019)

Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	7-1452665-1	1.2x0.6FS	BN	0.35	AMP	967067-2	X013	33
2	AMP	2141970-1	1.2x0.6FS	YE	0.13	AMP	967067-2
3	AMP	2141970-1	1.2x0.6FS	BU	0.13	AMP	967067-2
