Connector End View - X577 (Fremont: 01/05/2019 - 06/04/2019)

Tesla Part Number  1075244-00-A

Connector  YAZAKI 7283-6444-60

Color  GN

Connector Location:

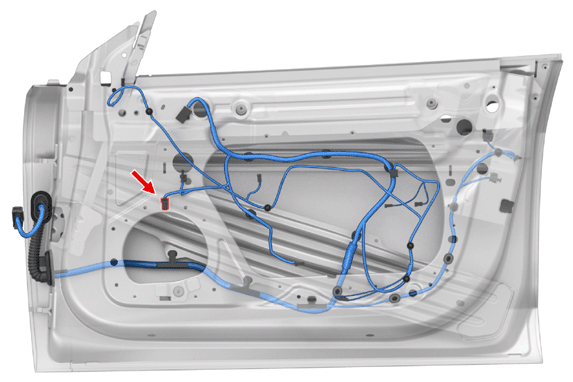

Fig 1: Connector Component Location - X577 (Fremont: 01/05/2019 - 06/04/2019)
G16618461Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X577 (Fremont: 01/05/2019 - 06/04/2019)
G16618462Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 YAZAKI 7116-4781-02 1.5x0.8F OG 1.00     X053 22
2 YAZAKI 7116-4781-02 1.5x0.8F BK 1.00     X053 21
