Connector End View - X596 (Fremont: 01/05/2019 - 06/04/2019)

Tesla Part Number  1015004-01-B

Connector  DELPHI 13649799

Color  WH

Connector Location:

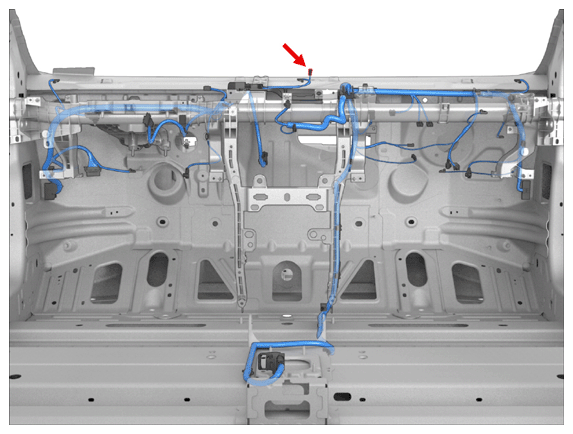

Fig 1: Connector Component Location - X596 (Fremont: 01/05/2019 - 06/04/2019)
G16618477Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X596 (Fremont: 01/05/2019 - 06/04/2019)
G16618478Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 AMP 5-963715-1 0.63x0.63F RD 0.75
2 AMP 5-963715-1 0.63x0.63F BU 0.75
