Connector End View - X801 (Fremont: 01/05/2019 - 06/04/2019)

Tesla Part Number  1073368-02-A

Connector  ROSENBERGER 59Z006-T00-C

Color  BU

Connector Location:

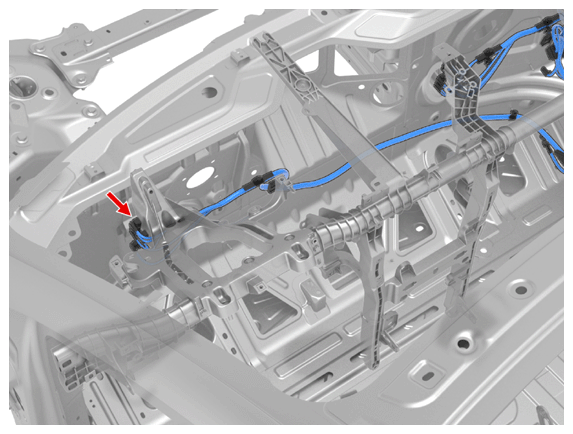

Fig 1: Connector Component Location - X801 (Fremont: 01/05/2019 - 06/04/2019)
G16618524Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X801 (Fremont: 01/05/2019 - 06/04/2019)
G16618525Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 ROSENBERGER 59K25H-1M4A4 COAX BK D302     X885M 1
