Connector End View - X954M (Fremont: 01/05/2019 - 06/04/2019)

Tesla Part Number 1042577-00-A

Connector SUMITOMO 6098-3869

Color WH

Connector Location:

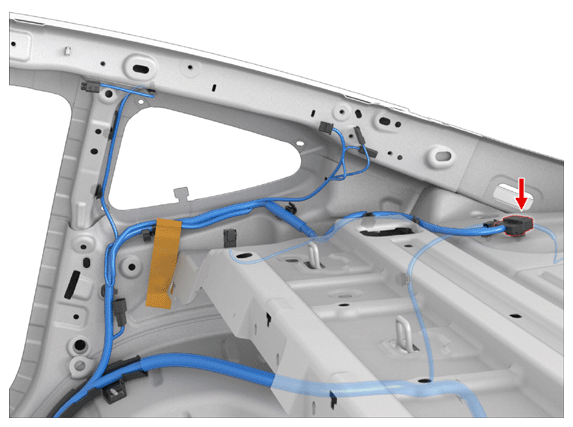

Fig 1: Connector Component Location - X954M (Fremont: 01/05/2019 - 06/04/2019)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X954M (Fremont: 01/05/2019 - 06/04/2019)

Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13	X050	50
3	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35
4	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13	X050	51
5	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35	X050	49
6	unused
7	SUMITOMO	8100-3623	0.64x0.64M	OG	0.35	X051	15
8	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35	X050	46
9	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35	X051	14
10	unused
