Connector End View - X030 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)

Tesla Part Number  1090045-01-A

Connector  SUMITOMO 6098-8363

Color  BK

Connector Location:

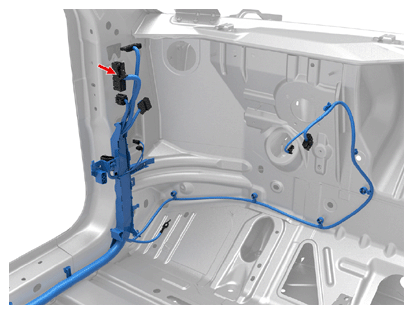

Fig 1: Connector Component Location - X030 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
G16618749Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X030 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
G16618750Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 SUMITOMO 8100-3625 0.64x0.64F BU 0.50     X924M 4
2 SUMITOMO 8100-3625 0.64x0.64F GY 0.35
3 unused
4 unused
5 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X225 1
6 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X225 2
7 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X201 17
8 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X201 18
9 unused
10 unused
11 unused
12 unused
13 SUMITOMO 8240-0214 1.5x0.64F BK 2.00     X930F 26
14 SUMITOMO 8240-0215 1.5x0.64F WH 0.35     X201 25
15 SUMITOMO 8240-0215 1.5x0.64F BU 0.35     X201 26
16 SUMITOMO 8100-3625 0.64x0.64F BK 0.35     X981M 16
17 unused
18 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X296 1
19 unused
20 SUMITOMO 8100-3625 0.64x0.64F OG 0.35     X924M 16
21 SUMITOMO 8240-0182 0.64x0.64F YE 0.13     X924M 6
22 SUMITOMO 8240-0182 0.64x0.64F GN 0.13     X924M 5
23 unused
24 SUMITOMO 8240-0214 1.5x0.64F WH 2.00     X936F 15
25 SUMITOMO 8240-0214 1.5x0.64F BU 2.00     X936F 1
26 SUMITOMO 8240-0215 1.5x0.64F YE 0.35     X950M 9
27 SUMITOMO 8240-0215 1.5x0.64F GN 0.50     X676 2
28 SUMITOMO 8240-0215 1.5x0.64F OG 0.35     X096 10
29 SUMITOMO 8240-0215 1.5x0.64F GY 0.50     X924M 10
30 SUMITOMO 8240-0215 1.5x0.64F WH 0.50     X924M 9
31 unused
32 unused
33 unused
34 SUMITOMO 8240-0215 1.5x0.64F RD 0.50     X497 4
35 SUMITOMO 8240-0339 1.5x0.64F YE 0.13     X930F 4
36 SUMITOMO 8240-0215 1.5x0.64F YE 0.35     X981M 19
37 unused
38 SUMITOMO 8240-0182 0.64x0.64F BU 0.13
39 SUMITOMO 8240-0182 0.64x0.64F WH 0.13
40 SUMITOMO 8240-0182 0.64x0.64F BU 0.13     X493 1
41 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X270 5
42 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X270 2
43 unused
44 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X270 3
45 unused
46 SUMITOMO 8240-0213 1.5x0.64F YE 1.00
47 SUMITOMO 8240-0213 1.5x0.64F YE 1.00
48 SUMITOMO 8240-0214 1.5x0.64F WH 1.50     X924M 1
49 SUMITOMO 8240-0214 1.5x0.64F GY 1.50     X924M 12
50 SUMITOMO 8240-0214 1.5x0.64F BU 2.00     X930F 1
51 SUMITOMO 8240-0214 1.5x0.64F RD 1.50     X162 1
52 SUMITOMO 8240-0214 1.5x0.64F BK 1.50     X162 2
