Connector End View - X143 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)

Tesla Part Number  1496688-00-A

Connector  DELPHI 35126369

Color  BK

Connector Location:

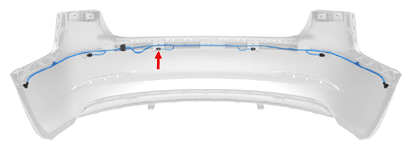

Fig 1: Connector Component Location - X143 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
G16618845Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X143 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
G16618846Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 AMP 7-1452665-1 1.2x0.6FS RD 0.35 AMP 967067-2
2 AMP 7-1452665-1 1.2x0.6FS GN 0.35 AMP 967067-2 X949F 4
3 AMP 7-1452665-1 1.2x0.6FS BK 0.35 AMP 967067-2
