Connector End View - X158A (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Tesla Part Number 1118708-00-A
Connector BOSCH 1928405525
Color BK
Connector Location:

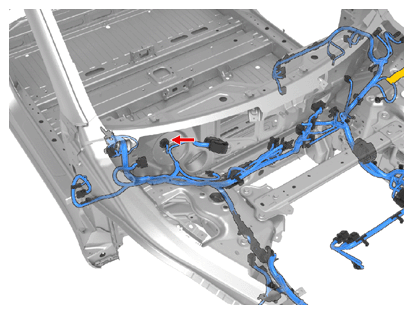

Fig 1: Connector Component Location - X158A (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Pinout:
Fig 2: Connector End View - X158A (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Details:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | BOSCH | 1928498056 | 2.8x0.8FS | YE | 0.50 | BOSCH | 1928300599 | X150A | 22 |
| 2 | BOSCH | 1928498056 | 2.8x0.8FS | GN | 0.50 | BOSCH | 1928300599 | X150A | 2 |
| 3 | BOSCH | 1928498056 | 2.8x0.8FS | BU | 0.50 | BOSCH | 1928300599 | X150A | 23 |
| 4 | BOSCH | 1928498056 | 2.8x0.8FS | GY | 0.50 | BOSCH | 1928300599 | X150A | 8 |
