Connector End View - X410 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Tesla Part Number 1117401-00-A
Connector HIRSCHMANN 805-031-585
Color BK
Connector Location:

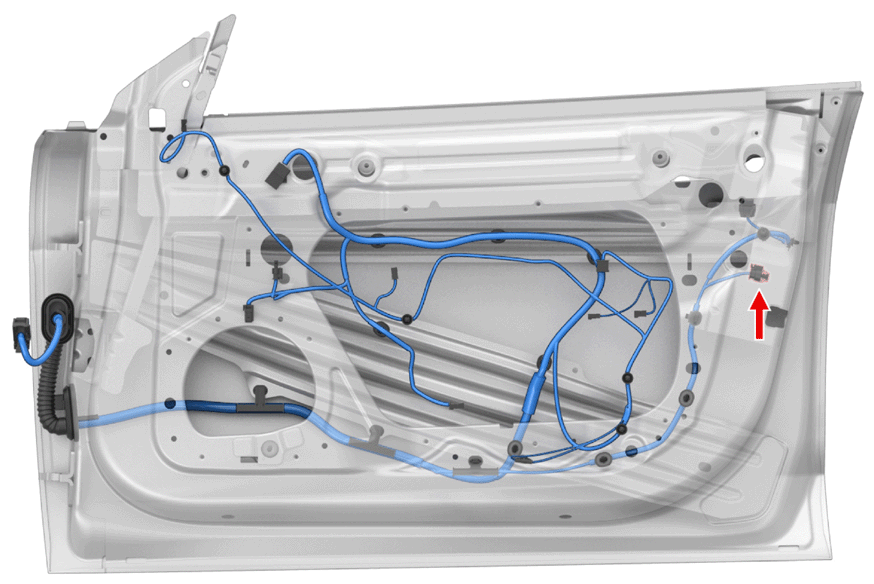

Fig 1: Connector Component Location - X410 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Pinout:

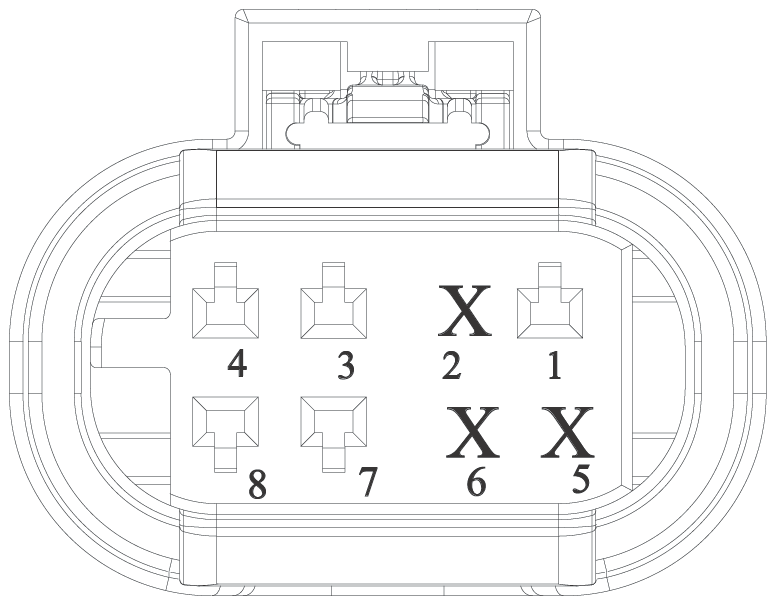

Fig 2: Connector End View - X410 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Details:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452665-1 | 1.2x0.6FS | BN | 0.35 | AMP | 967067-2 | X053 | 27 |
| 2 | unused | ||||||||
| 3 | AMP | 7-1452668-1 | 1.2x0.6FS | GY | 0.50 | AMP | 967067-1 | X053 | 37 |
| 4 | AMP | 7-1452668-1 | 1.2x0.6FS | WH | 0.50 | AMP | 967067-1 | X053 | 36 |
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | AMP | 7-1452665-1 | 1.2x0.6FS | BK | 0.35 | AMP | 967067-2 | ||
| 8 | AMP | 7-1452665-1 | 1.2x0.6FS | OG | 0.35 | AMP | 967067-2 | X401 | 2 |
