Connector End View - X470 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Tesla Part Number 1080929-00-A
Connector JST SQFR-02H-1A-Y
Color YE
Connector Location:

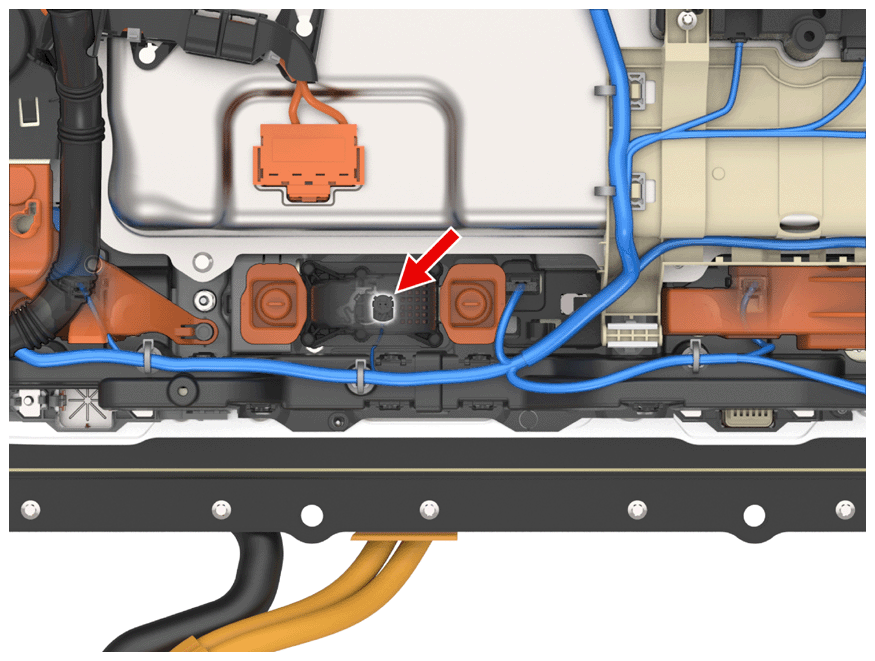

Fig 1: Connector Component Location - X470 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Pinout:
Fig 2: Connector End View - X470 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Details:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | JST | SSQF-A03GF-P-P | SQUIB | WH | 0.35 | X484 | 1 | ||
| 2 | JST | SSQF-A03GF-P-P | SQUIB | WH | 0.35 | X484 | 2 |
