Connector End View - X539 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Tesla Part Number 1084863-00-A
Connector AMP 2098641-5
Color BK
Connector Location:

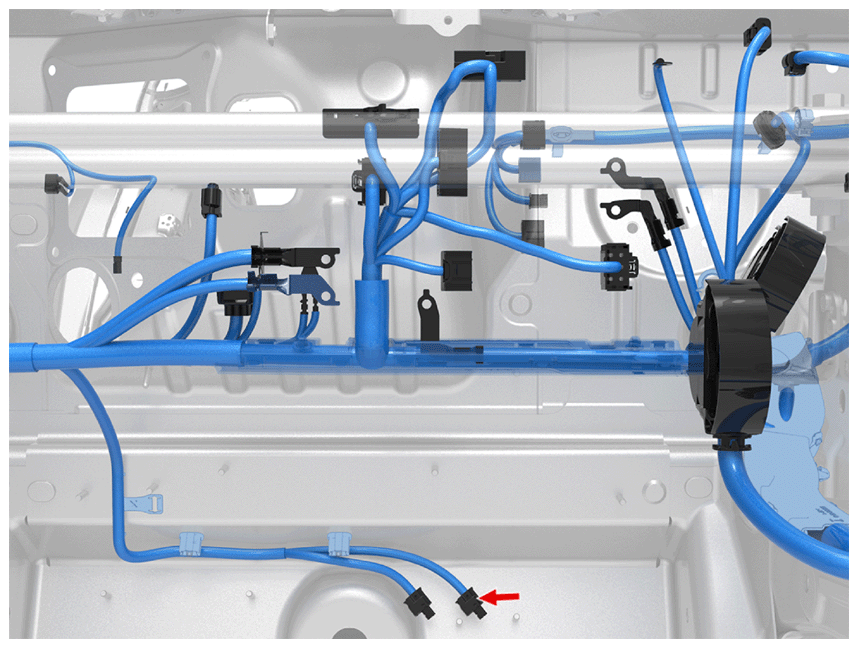

Fig 1: Connector Component Location - X539 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Pinout:

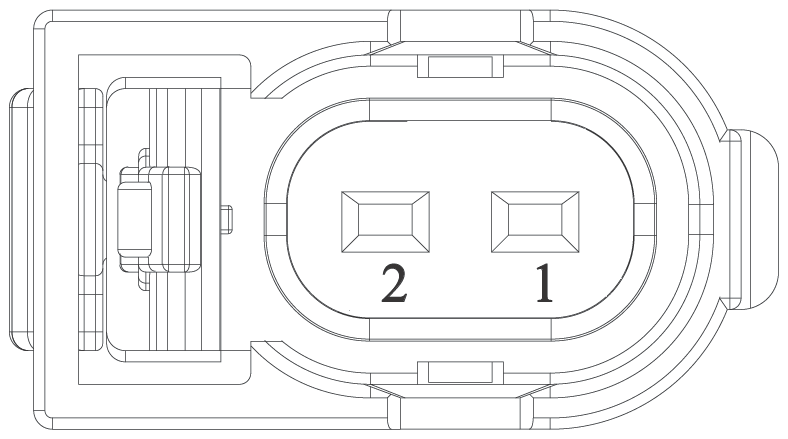

Fig 2: Connector End View - X539 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Details:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1670146-1 | 1.2x0.6FS | YE | 0.35 | AMP | 967067-2 | X911M | 7 |
| 2 | AMP | 1670146-1 | 1.2x0.6FS | OG | 0.35 | AMP | 967067-2 | X908F | 19 |
