Connector End View - X911F (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Tesla Part Number 1098098-00-A
Connector HIRSCHMANN 807-445-511
Color BK
Connector Location:

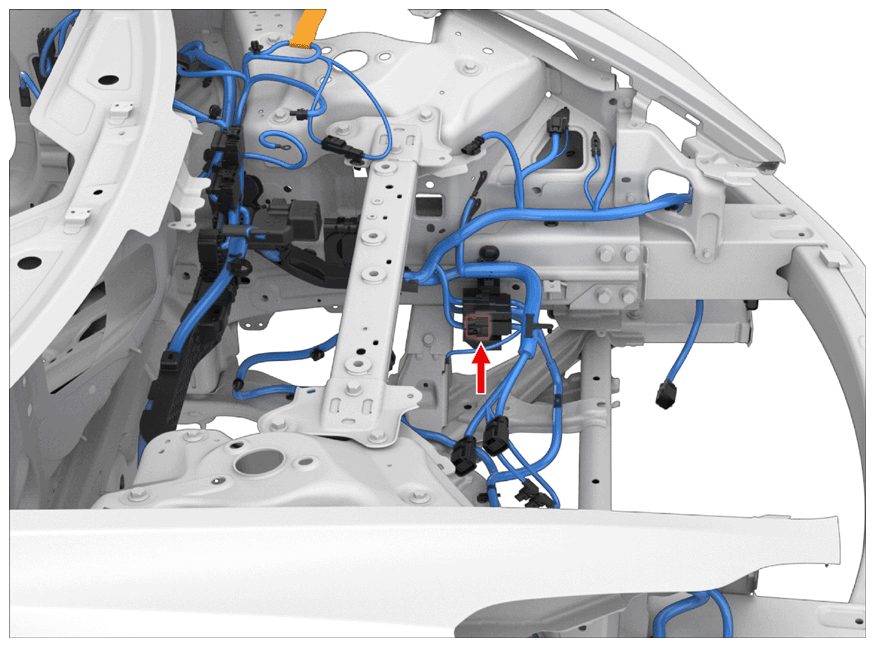

Fig 1: Connector Component Location - X911F (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Pinout:
Fig 2: Connector End View - X911F (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Details:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452671-1 | 1.2x0.6FS | VT | 1.00 | AMP | 967067-1 | X095 | 1 |
| 2 | AMP | 2141970-1 | 1.2x0.6FS | YE | 0.13 | AMP | 967067-2 | X093 | 12 |
| 3 | AMP | 2141970-1 | 1.2x0.6FS | WH | 0.13 | AMP | 967067-2 | X093 | 2 |
| 4 | unused | ||||||||
| 5 | unused | ||||||||
| 6 | AMP | 7-1452665-1 | 1.2x0.6FS | BN | 0.35 | AMP | 967067-2 | X093 | 23 |
| 7 | AMP | 7-1452665-1 | 1.2x0.6FS | YE | 0.35 | AMP | 967067-2 | X093 | 4 |
| 8 | AMP | 7-1452665-1 | 1.2x0.6FS | BK | 0.35 | AMP | 967067-2 | X093 | 13 |
| 9 | unused | ||||||||
| 10 | AMP | 7-1452665-1 | 1.2x0.6FS | GN | 0.35 | AMP | 967067-2 | X093 | 3 |
| 11 | AMP | 2141970-1 | 1.2x0.6FS | YE | 0.13 | AMP | 967067-2 | X093 | 22 |
| 12 | unused | ||||||||
| 13 | unused | ||||||||
| 14 | AMP | 2141970-1 | 1.2x0.6FS | BU | 0.13 | AMP | 967067-2 | X093 | 30 |
| 15 | AMP | 2141970-1 | 1.2x0.6FS | WH | 0.13 | AMP | 967067-2 | X093 | 20 |
| 16 | AMP | 7-1452671-1 | 1.2x0.6FS | BK | 1.00 | AMP | 967067-1 | X095 | 3 |
