Connector End View - X936F (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)

Tesla Part Number 1048099-03-A

Connector YAZAKI 7287-1918-90

Color BU

Connector Location:

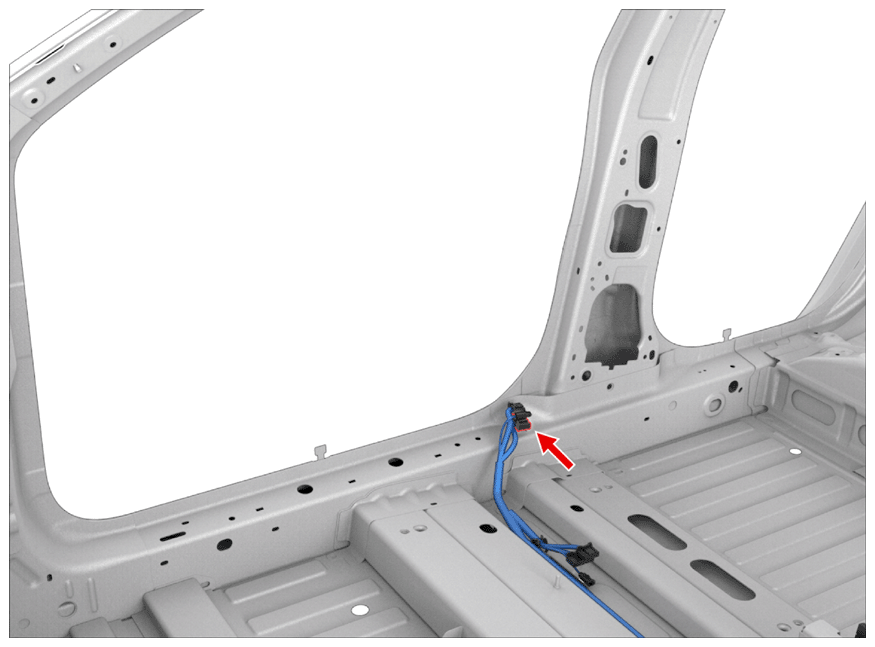

Fig 1: Connector Component Location - X936F (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X936F (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)

Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00	X030	25
2	SUMITOMO	8240-0182	0.64x0.64F	RD	0.13	X950M	1
3	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X031	26
4	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50	X915F	1
5	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X981M	3
6	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13	X950M	2
7	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X930F	9
8	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13	X950M	3
9	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X168	4
10	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13
11	SUMITOMO	8100-3625	0.64x0.64F	OG	0.50	X981M	5
12	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X981M	7
13	SUMITOMO	8240-0182	0.64x0.64F	RD	0.13	X096	5
14	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50	X924M	11
15	SUMITOMO	8240-0214	1.5x0.64F	WH	2.00	X030	24
16	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13	X950M	15
17	SUMITOMO	8240-0182	0.64x0.64F	YE	0.13	X096	6
18	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50	X915F	2
19	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50	X981M	4
20	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13	X930F	10
21	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13	X950M	16
22	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13
23	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50	X981M	6
24	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X981M	8
25	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X201	42
26	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50	X924M	20
