Connector End View - X523 (Fremont: 07/11/2018 - 01/04/2019)

Tesla Part Number  1015073-00-A

Connector  AMP 1-967644-1

Color  BK

Connector Location:

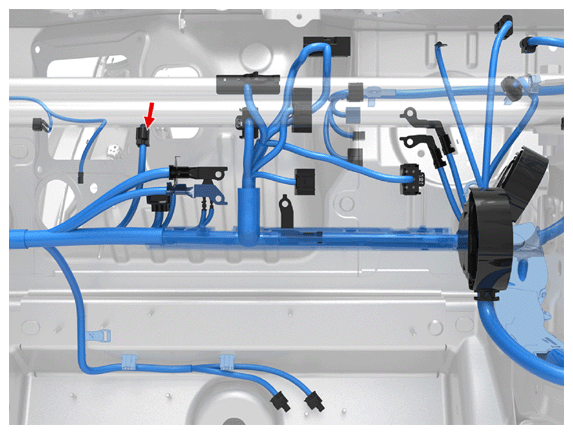

Fig 1: Connector Component Location - X523 (Fremont: 07/11/2018 - 01/04/2019)
G16617633Courtesy of TESLA, INC.

Connector Pinout:

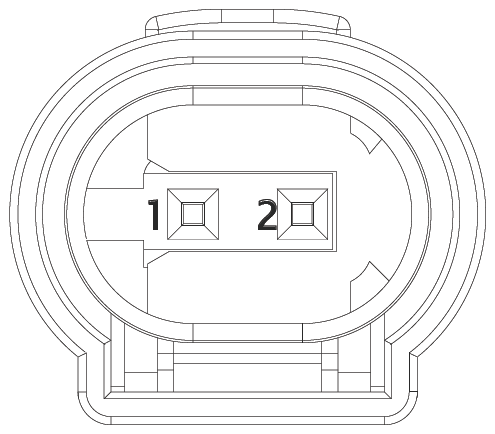

Fig 2: Connector End View - X523 (Fremont: 07/11/2018 - 01/04/2019)
G16617634Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 AMP 5-962885-1 0.63x0.63FS VT 0.35 AMP 967067-2 X010 36
2 AMP 5-962885-1 0.63x0.63FS BN 0.35 AMP 967067-2 X010 14
