Steering Rack (RWD) (RHD) - Remove and Replace: Remove

  1. Remove the front subframe. See SUBFRAME ASSEMBLY - FRONT (RWD) - REMOVE AND INSTALL .

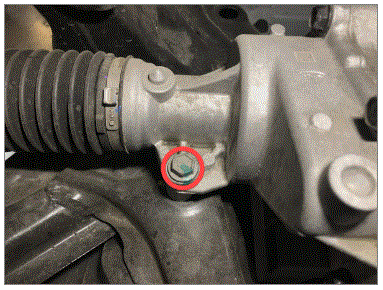

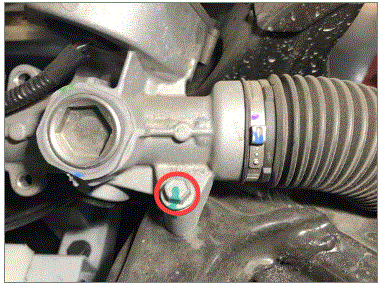

  2. Remove the outer bolts that attach the steering gear assembly to the front subframe.
    G00647819Courtesy of TESLA, INC.
    G00647820Courtesy of TESLA, INC.

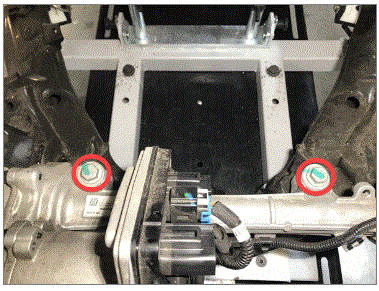

  3. Remove the inner bolts that attach the steering gear assembly to the front subframe.
    G00647821Courtesy of TESLA, INC.

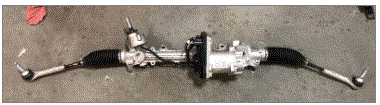

  4. Remove the steering gear assembly from the front subframe.
    G00647822Courtesy of TESLA, INC.
