Connector End View - X435 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)

Tesla Part Number  1015001-00-A

Connector  AMP 1-1534113-1

Color  BK

Connector Location:

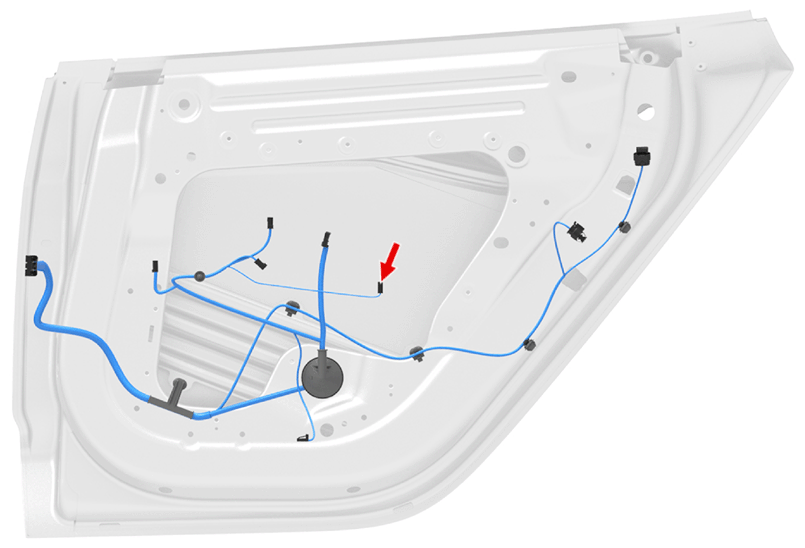

Fig 1: Connector Component Location - X435 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
G16619169Courtesy of TESLA, INC.

Connector Pinout:

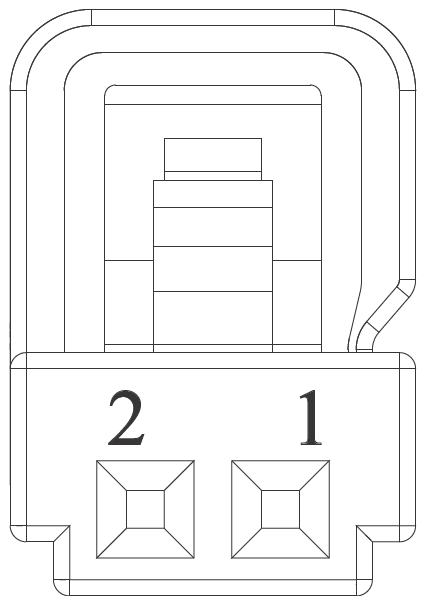

Fig 2: Connector End View - X435 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
G16619170Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 AMP 5-928999-1 0.63x0.63F OG 0.35     X924F 16
2 AMP 5-928999-1 0.63x0.63F BU 0.35
