Connector End View - X542_1 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Tesla Part Number 1015015-00-A
Connector AMP 1241634-1
Color BK
Connector Location: Currently not available
Connector Pinout:

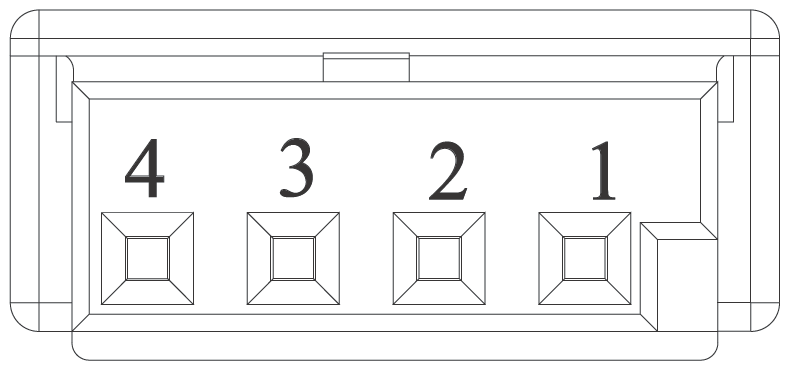

Fig 1: Connector End View - X542_1 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Details:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1355717-1 | 0.63x0.63F | BU | 0.13 | X055_1 | 26 | ||
| 2 | AMP | 1355717-1 | 0.63x0.63F | BN | 0.13 | X055_1 | 29 | ||
| 3 | AMP | 1355717-1 | 0.63x0.63F | YE | 0.13 | X055_1 | 27 | ||
| 4 | AMP | 1355717-1 | 0.63x0.63F | RD | 0.13 | X055_1 | 28 |
