Connector End View - X366 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Tesla Part Number 1015005-02-A
Connector AMP 3-1718346-1
Color BU
Connector Location:

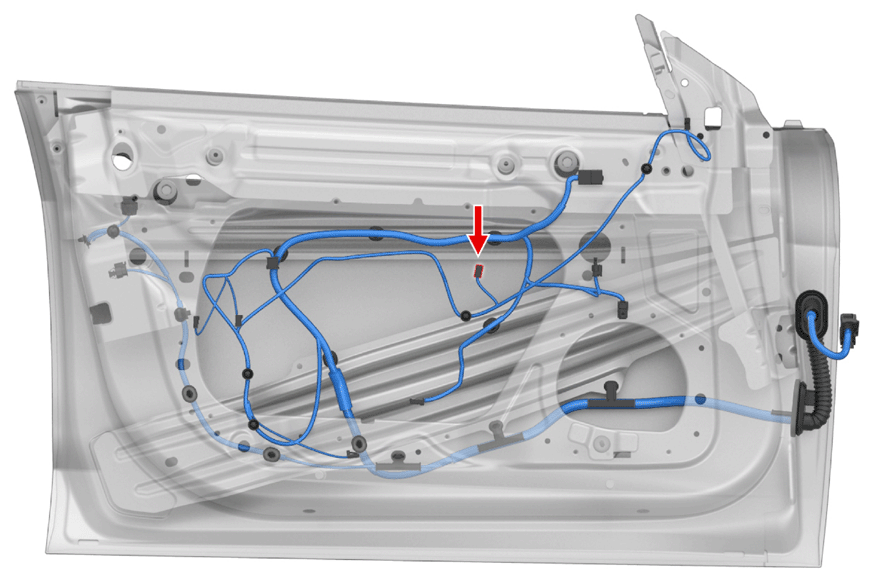

Fig 1: Connector Component Location - X366 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Pinout:
Fig 2: Connector End View - X366 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Details:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-928999-1 | 0.63x0.63F | BK | 0.35 | ||||
| 2 | AMP | 1355717-1 | 0.63x0.63F | YE | 0.13 | X033 | 2 | ||
| 3 | AMP | 1355717-1 | 0.63x0.63F | WH | 0.13 | X033 | 32 |
