Connector End View - X193A (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Tesla Part Number 1078969-00-A
Connector AMP 1-1718644-1
Color BK
Connector Location:

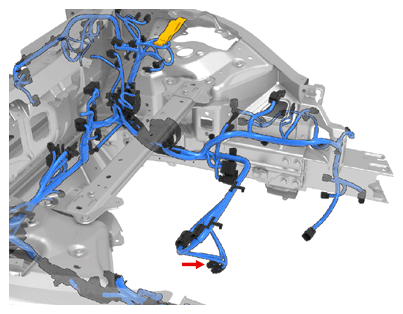

Fig 1: Connector Component Location - X193A (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Pinout:
Fig 2: Connector End View - X193A (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Details:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452665-1 | 1.2x0.6FS | BN | 0.35 | AMP | 967067-2 | X013 | 33 |
| 2 | AMP | 2141970-1 | 1.2x0.6FS | YE | 0.13 | AMP | 967067-2 | ||
| 3 | AMP | 2141970-1 | 1.2x0.6FS | BU | 0.13 | AMP | 967067-2 |
