Connector End View - X408A [2/24/2019 - 12/7/2019]

Location:

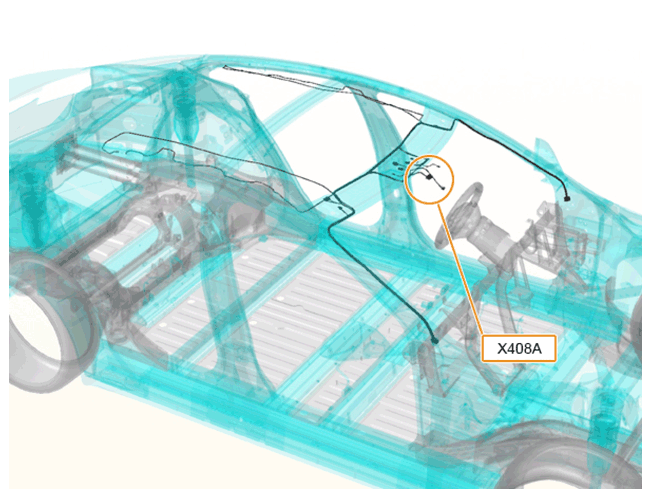

Fig 1: Connector Component Location - X408A [2/24/2019 - 12/7/2019]
G15015525Courtesy of TESLA, INC.

Connector Detail: SUMITOMO 6098-3811

Color: BK

Serviceability: Terminal Pigtail

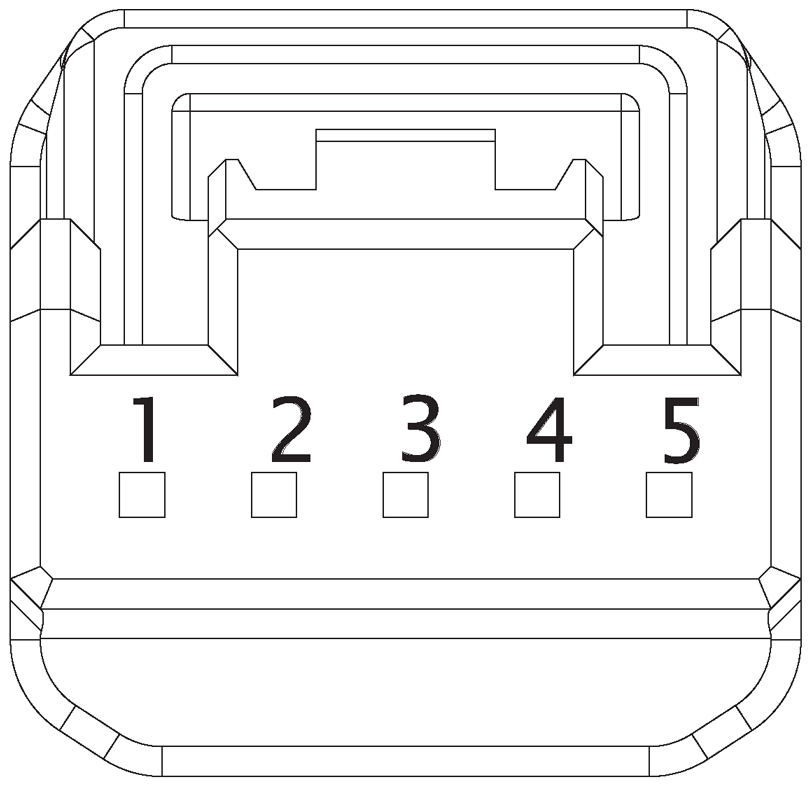

Fig 2: Connector End View - X408A [2/24/2019 - 12/7/2019]
G15015526Courtesy of TESLA, INC.
Cavity Color Size Plate Destination Terminal Seal Service Part Depinning Tool
1 RD/BU 0.35 SN Z94-PAC06-R SUMITOMO 8100-3625   1099530-00-A
2 RD/GY 0.35 SN X968F-8 SUMITOMO 8100-3625   1099530-00-A
3 OG 0.35 SN X967F-7 SUMITOMO 8100-3625   1099530-00-A
4 GN 0.35 SN X967F-8 SUMITOMO 8100-3625   1099530-00-A
5 BK/WH 0.35 SN X967F-9 SUMITOMO 8100-3625   1099530-00-A
Cavity Color Size Plate Destination Terminal Seal Service Part Depinning Tool
1 RD/BU 0.35 SN Z94-PAC06-R SUMITOMO 8100-3625   1099530-00-A
2 RD/GY 0.35 SN X968F-8 SUMITOMO 8100-3625   1099530-00-A
3 OG 0.35 SN X967F-7 SUMITOMO 8100-3625   1099530-00-A
4 GN 0.35 SN X967F-8 SUMITOMO 8100-3625   1099530-00-A
5 BK/WH 0.35 SN X967F-9 SUMITOMO 8100-3625   1099530-00-A
