Connector End View - X403 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Tesla Part Number 1046183-00-A
Connector AMP 1379217-3
Color BK
Connector Location:

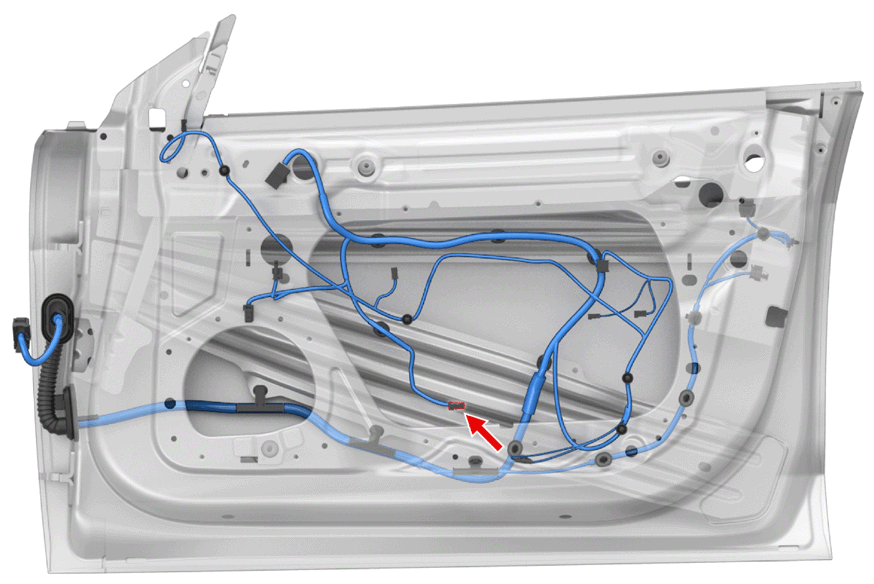

Fig 1: Connector Component Location - X403 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Pinout:
Fig 2: Connector End View - X403 (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
Connector Details:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 968075-2 | 2.8x0.6F | RD | 1.50 | X053 | 35 | ||
| 2 | AMP | 1355717-1 | 0.63x0.63F | GN | 0.13 | X053 | 9 | ||
| 3 | AMP | 1355717-1 | 0.63x0.63F | BK | 0.13 | X053 | 7 | ||
| 4 | AMP | 1355717-1 | 0.63x0.63F | WH | 0.13 | X053 | 8 | ||
| 5 | AMP | 968075-2 | 2.8x0.6F | OG | 1.50 | X053 | 34 |
