Connector End View - X167A (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)

Tesla Part Number  1496690-00-A

Connector  DELPHI 35020435

Color  BK

Connector Location:

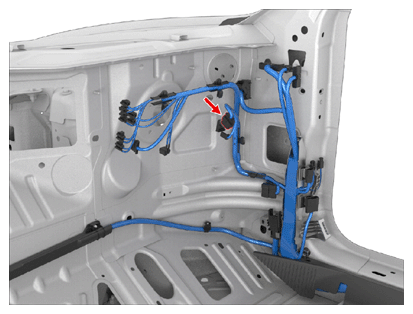

Fig 1: Connector Component Location - X167A (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
G16618880Courtesy of TESLA, INC.

Connector Pinout:

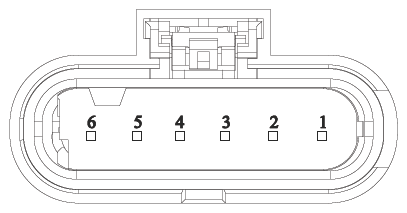

Fig 2: Connector End View - X167A (Fremont: 06/05/2019 - 10/04/2020 | Shanghai: 10/18/2019 - 12/27/2020)
G16618881Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 AMP 2141970-2 1.2x0.6FS BN 0.13 AMP 967067-2 X936M 9
2 AMP 2141970-2 1.2x0.6FS GN 0.13 AMP 967067-2 X936M 16
3 AMP 2141970-2 1.2x0.6FS VT 0.13 AMP 967067-2 X936M 21
4 AMP 2141970-2 1.2x0.6FS YE 0.13 AMP 967067-2 X936M 8
5 AMP 2141970-2 1.2x0.6FS GY 0.13 AMP 967067-2 X936M 6
6 AMP 2141970-2 1.2x0.6FS RD 0.13 AMP 967067-2 X936M 2
