Buckle Assembly - 1st Row - LH - Remove And Replace: Removal

  1. Open door.
  2. Power seat adjust rearwards and upwards for access.
  3. Remove screw securing inner cover to seat.

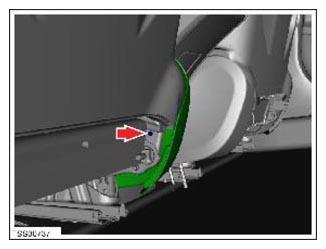

    G14979873Courtesy of TESLA, INC.
  4. Carefully release inner cover from retaining bracket.
    NOTE: Center console removed for clarity.

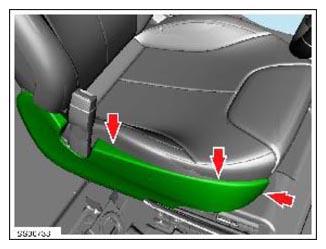

    G14979874Courtesy of TESLA, INC.
  5. Release clip securing seat harness to cover.
  6. Remove inner cover.
  7. Disconnect seat belt buckle connector and harness.

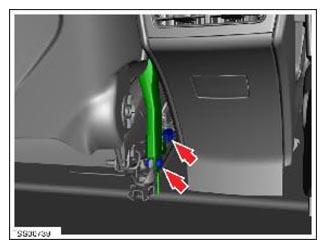

    G14979875Courtesy of TESLA, INC.
  8. Remove bolt securing seat belt buckle to seat frame (torque 48 N.m).
  9. Remove seat belt buckle.
