Steering Rack (LHD Dual Motor) (3rd Generation) - Remove And Replace: Removal
- Remove the 3rd generation front subframe assembly. See Subframe Assembly - Front (3rd Generation) (Remove and Install)
.

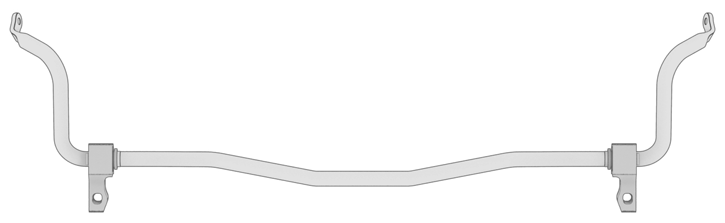

- Remove the front stabilizer bar from the front subframe assembly, and then set it aside.
 Courtesy of TESLA, INC.
|
- Remove the bolt that attaches the battery pump 2 bracket to the front subframe assembly, and then remove the bracket from the subframe.
 Courtesy of TESLA, INC.
|

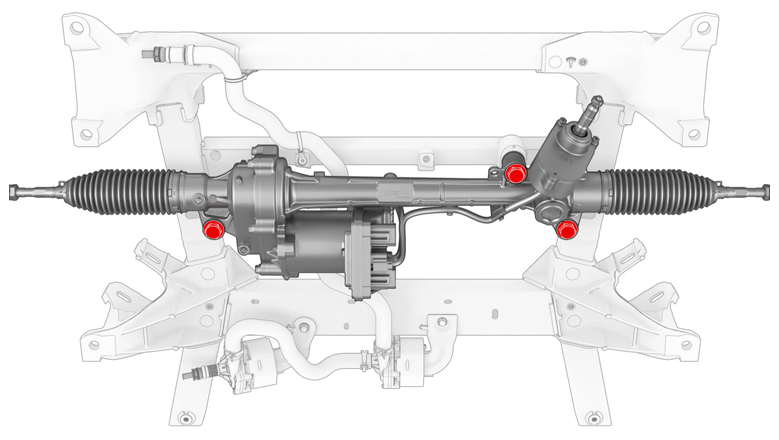

- Remove the bolts (x3) that attach the steering rack to the front subframe assembly, and then remove the steering rack from the subframe.
 Courtesy of TESLA, INC.
|
