Surround - Steering Wheel - Remove And Replace: Install

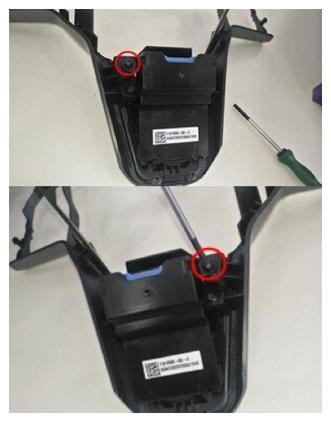

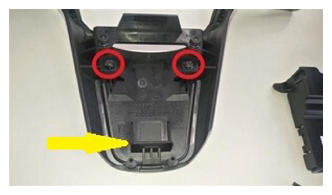

Position the lower spoke cover onto the steering wheel surround, and then install the bolts.
0.9 N.m

NOTE: Insert the lower edge of the lower spoke.

Tip: Use of the following tool(s) is recommended:
- T10 Torx bit
Courtesy of TESLA, INC.
Install the bolts that attach the steering wheel controller to the steering wheel surround.
0.9 N.m

Tip: Use of the following tool(s) is recommended:
- T10 Torx bit
Courtesy of TESLA, INC.

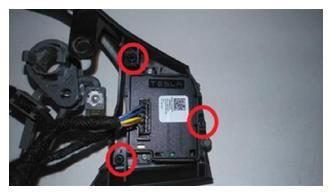

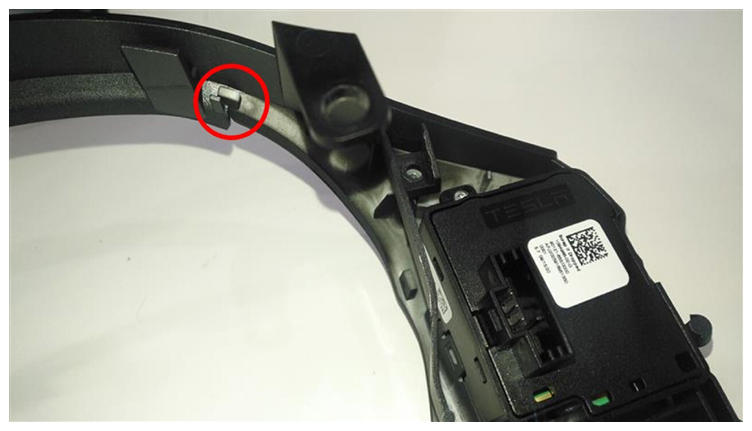

Position the LH steering wheel switch onto the steering wheel surround, and then install the bolts.
0.9 N.m

NOTE: Take note of the correct installation position.

Tip: Use of the following tool(s) is recommended:
- T10 Torx bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

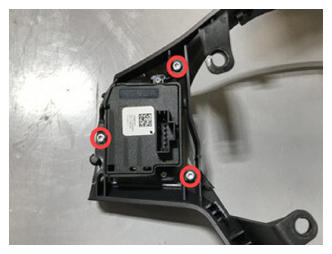

Position the RH steering wheel switch onto the steering wheel surround, and then install the bolts.
0.9 N.m

Tip: Use of the following tool(s) is recommended:
- T10 Torx bit
Courtesy of TESLA, INC.

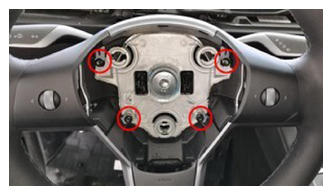

Position the steering wheel surround onto the steering wheel, and then install the bolts.
5.4 N.m

Tip: Use of the following tool(s) is recommended:
- T20 socket
- 4 in extension
Courtesy of TESLA, INC.

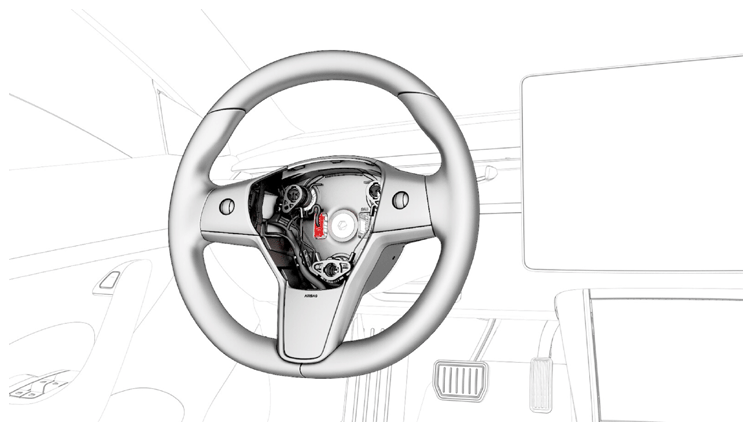

Position the horn to the steering wheel assembly, and then fasten the clips.

Courtesy of TESLA, INC.

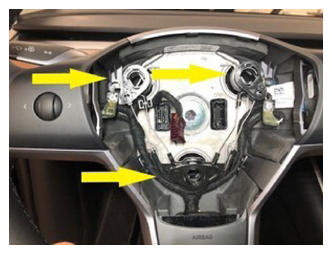

Connect the LH steering wheel switch electrical connector. Repeat this step for the RH steering wheel switch electrical connector.

Courtesy of TESLA, INC.

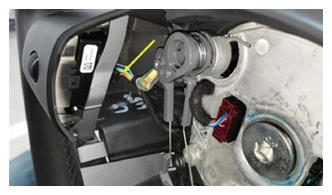

Connect the lower connection from the steering wheel controller, and then remove the horn assembly from the steering wheel.

Courtesy of TESLA, INC.

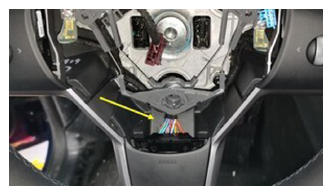

Connect the steering wheel electrical wiring harness connector.

Courtesy of TESLA, INC.
Install the driver airbag. See AIRBAG - DRIVER (REMOVE AND REPLACE) .
Connect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
Install the HEPA filter assembly. See ASSEMBLY - FILTER - HEPA (REMOVE AND REPLACE) .
