Module - ECU - Occupant Classification System (OCS) - Front Passenger - Remove And Replace: Install

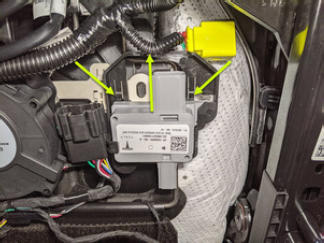

- Position the front passenger seat OCS ECU module onto the seat assembly, and then slide the module downward until the tabs are fully engaged.
 Courtesy of TESLA, INC.
|

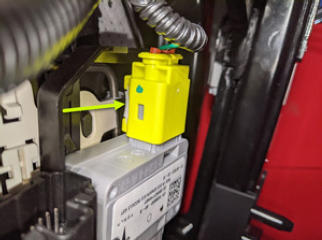

- Connect the airbag electrical connector to the front passenger seat OCS ECU module.
NOTE:
The locking tab will engage once the connector is fully seated.
 Courtesy of TESLA, INC.
|

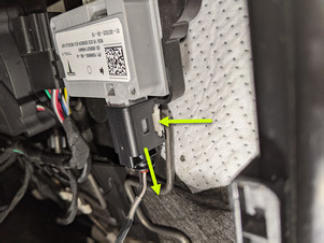

- Connect the OCS sensor mat electrical connector to the front passenger seat OCS ECU module.
NOTE:
The locking tab will engage once the connector is fully seated.
 Courtesy of TESLA, INC.
|

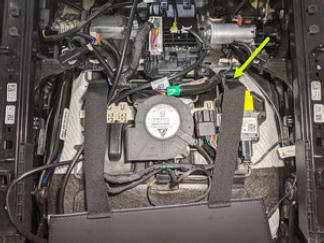

- Fasten the LH seat back elastic strap to the seat frame.
 Courtesy of TESLA, INC.
|
- Disconnect LV power. See LV Power (Disconnect and Connect)
.
- Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace)
.
- Close hood
- Move the front passenger seat to the original position.
- Calibrate the rear doors.
NOTE:
If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate
to calibrate the rear doors
