Sensor - Pressure Tube - Remove and Replace: Installation

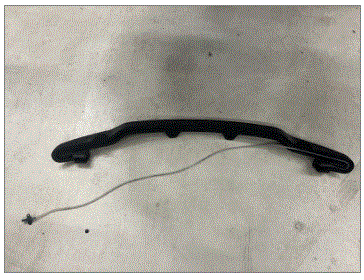

  1. Install the pressure sensor tune onto the front bumper beam foam.
    G00660938Courtesy of TESLA, INC.
  2. Install the front bumper beam foam onto the front bumper beam. See Foam - Bumper Beam - Front (Remove and Replace) .
  3. Install the front fascia. See Fascia Assembly - Front (Remove and Install) .
  4. Connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3 (Connect and Disconnect) .
  5. In Toolbox 3, select the Actions  tab, search for PROC_RCM_X_SERVICE-TASKS, click on the link of the routine, click RUN  and allow the routine to complete.
