Car Computer - Drip Guard - Remove And Replace: Remove

  1. Remove the IP carrier. See INSTRUMENT PANEL - INSTRUMENT PANEL - DASH PANEL - INSTRUMENT PANEL UPPER ASSEMBLY - REMOVE AND INSTALL .
  2. Release the clips (x3) and remove the car computer drip guard from the vehicle.

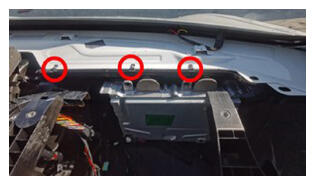

    G16600740Courtesy of TESLA, INC.

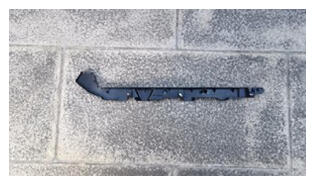

    G16600741Courtesy of TESLA, INC.
