Rear Undertray and Diffuser - Diffuser Assembly, Rear Fascia - Remove And Replace: Install
- Position the rear fascia diffuser to the vehicle, and then fasten the tabs (x10) that attach the rear fascia diffuser to the rear fascia.
- Secure the location hooks (x2) that attach the rear fascia harness to the rear fascia diffuser.
- Install the bolts (x2) that attach the rear fascia diffuser to the inside of the rear fascia.
3 N.m (2.2 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm socket
- 6 in extension
- Ratchet/torque wrench

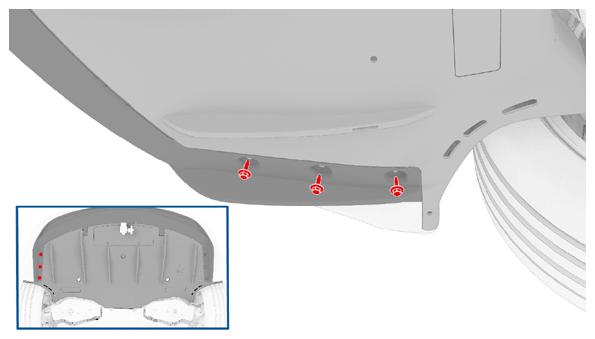

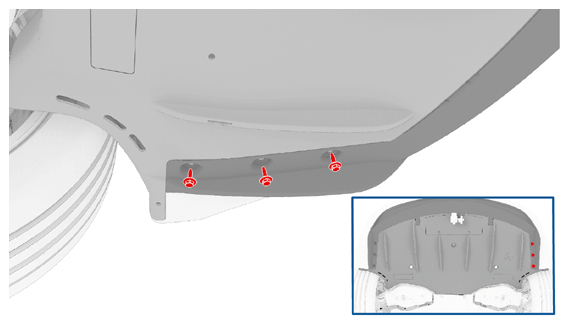

- Install the bolts (x6) that attach the rear fascia diffuser to the outer edge of the rear fascia.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm socket
- 6 in extension
- Ratchet/torque wrench
- Install the pedestrian warning speaker. See INFOTAINMENT - AUDIO SYSTEM - SPEAKERS, SUBWOOFER AND AMPLIFIER - AUDIO SPEAKERS - PEDESTRIAN WARNING SPEAKER - REMOVE AND REPLACE .
- Install the rear fascia. See BUMPER AND FASCIA - REAR BUMPER FASCIA - REAR FASCIA - REMOVE AND INSTALL .
