Repair and Diagnosis: Transmission: Clutches: Description

Clutch is a dry, single disc, coil spring type. Clutch is engaged or disengaged by a hydraulic system actuated by clutch pedal. A pre-lubricated clutch release bearing is also employed.

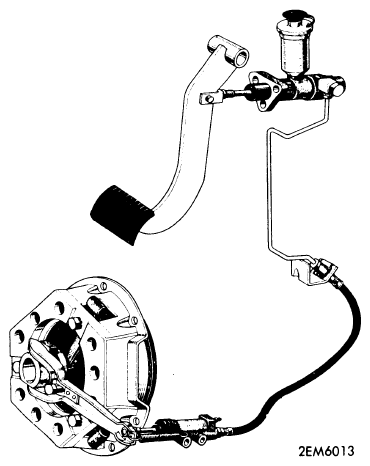

Fig 1: Clutch Components (Typical)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
