Throttle Positioner

Diaphragm type vacuum actuator is linked to carburetor throttle lever and controlled by vacuum switching valve to prevent throttle from closing completely during periods of deceleration.

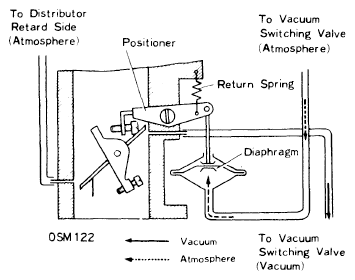

Fig 1: Throttle Positioner Sectional View
G09309499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
