Steering Columns: Overhaul: Reassembly

To reassemble steering column, reverse disassembly procedure and note the following: Grease upper bearing, replace column tube seal and floor pan cover gasket if necessary. After reassembly, make sure steering shaft does not bind in column tube.

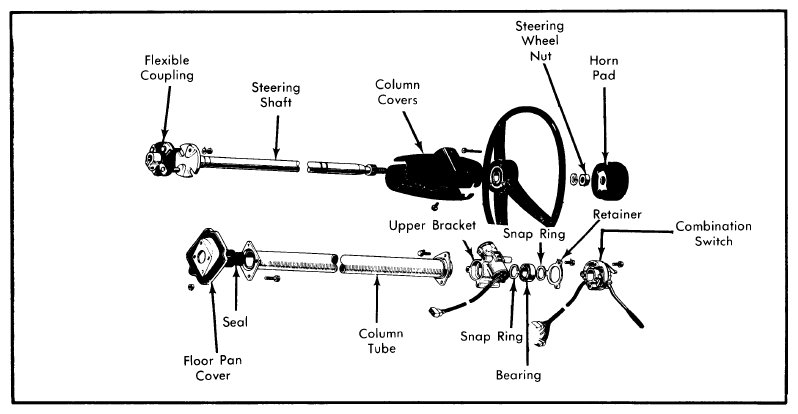

Fig 1: Exploded View of Land Cruiser Steering Column

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
