Evaporative Emissions System: Operation: Tercel

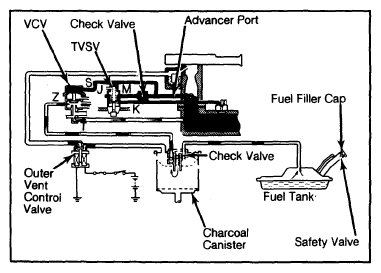

The fuel evaporation system is controlled by a thermal vacuum switching valve (TVSV), outer vent control valve and a vacuum control valve (VCV). When engine is not running, outer vent control valve is open. This allows fuel vapors from carburetor float chamber to be absorbed in the charcoal canister.
When engine is running, the TVSV opens and causes vacuum to build at the VCV. When engine warms up, the VCV opens and allows purging of stored fuel vapors in charcoal canister to the intake manifold. The system also uses 3 check valves in the charcoal canister. These control fuel tank pressure and vent excess vacuum from tank.
