Repair and Diagnosis: Transmission: Clutch: Clutches: Description

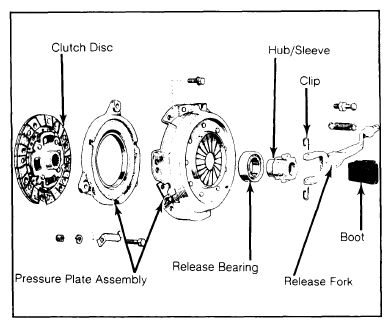

Clutch is a dry, single plate, diaphragm spring type which is hydraulically operated by a firewall mounted master cylinder and clutch housing mounted slave cylinder. Slave cylinders are nonadjustable and clearance is automatically compensated for by internal design of cylinder.
Pressure plate assembly and hub/sleeve retainer springs may vary between models.
