Control Module HVAC: Locations

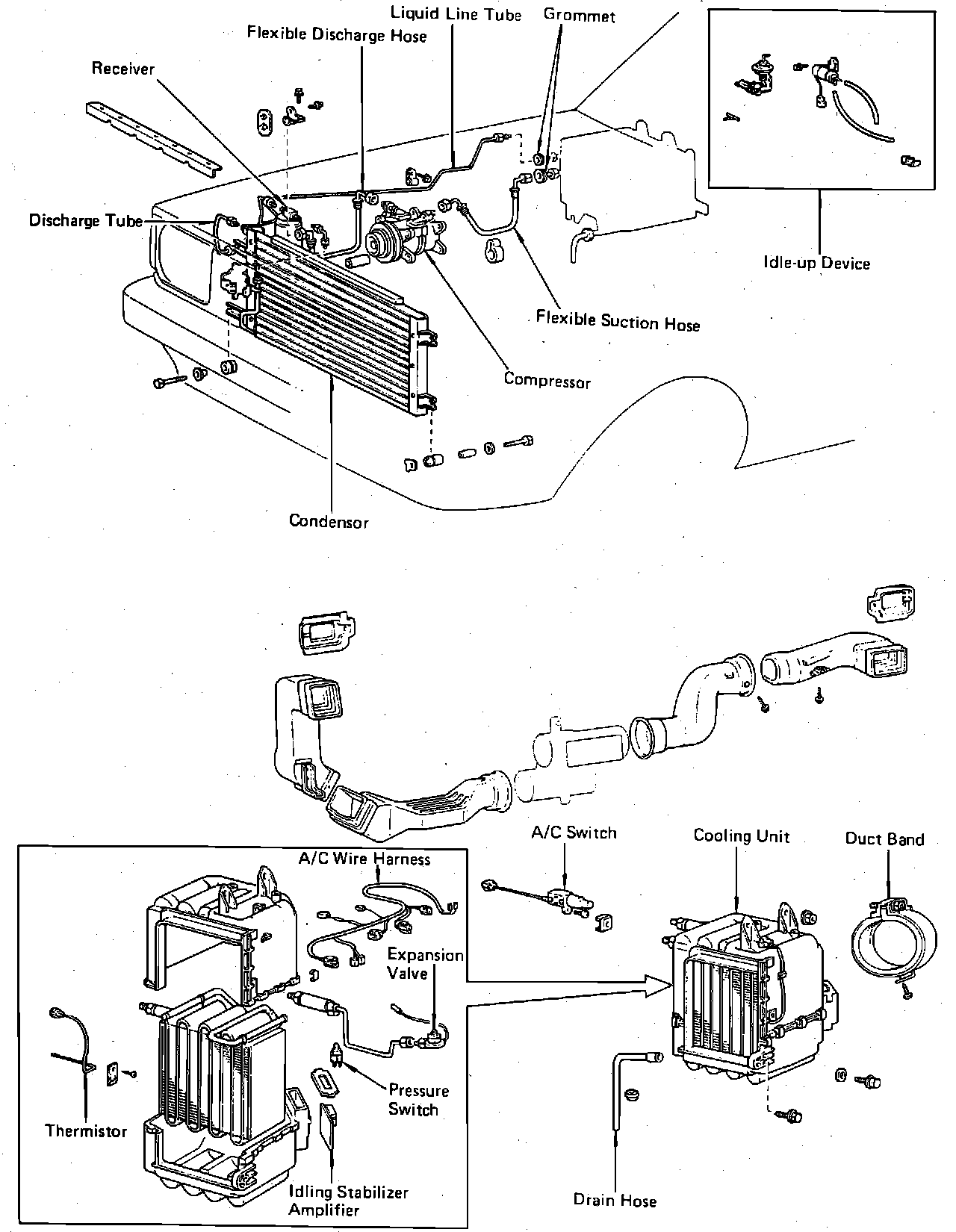

Air Conditioning System Components.:

Attached To A/C Cooling Unit

Applicable to: 1981-82 Models
