Main Relay (Computer/Fuel System): Locations

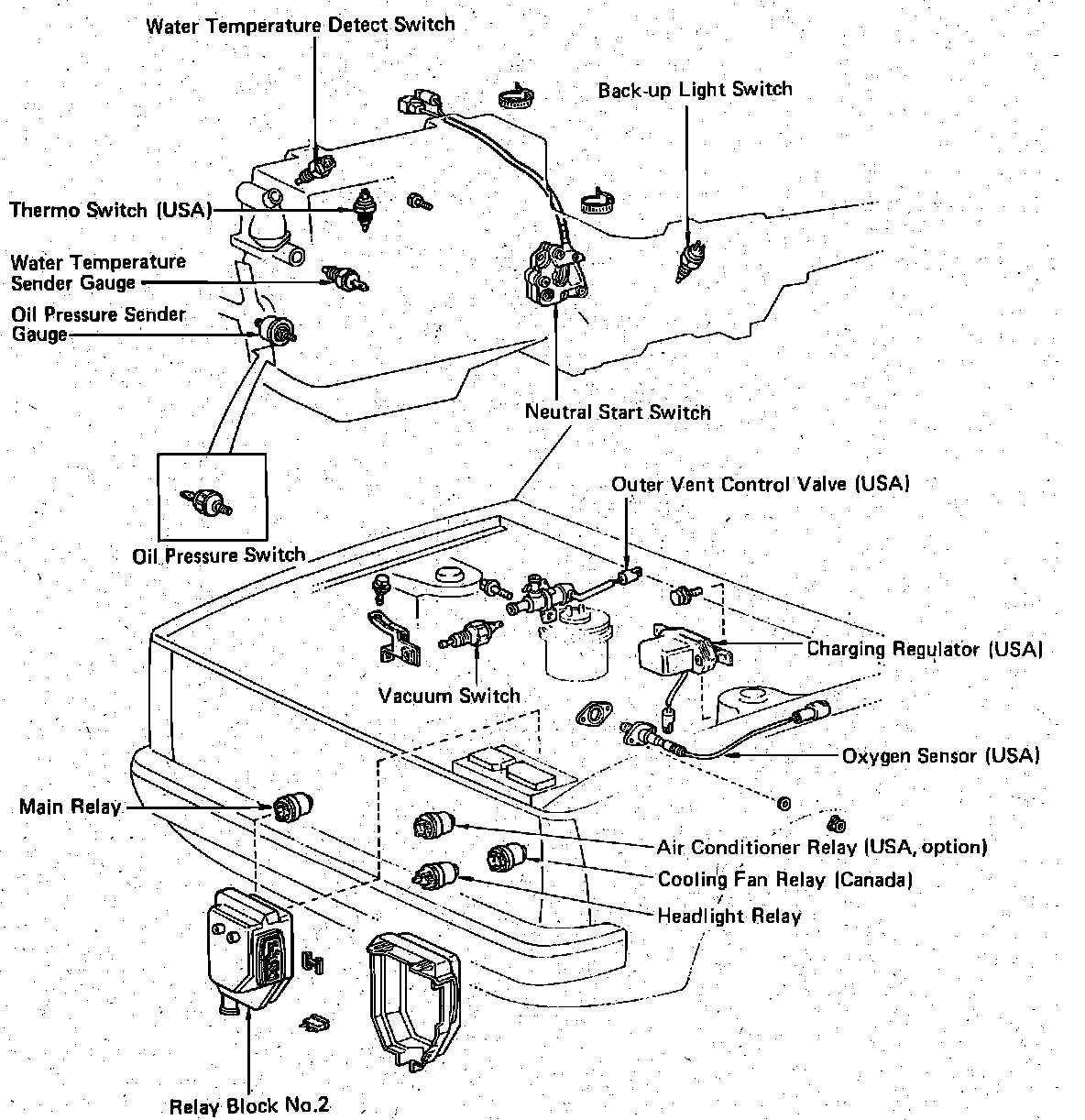

Engine Compartment Switches & Relays.:




Front Of Engine Compartment

Applicable to: 1981-82 Models
