Tercel (Calif. Secondary & Federal)

Start engine and run at idle. Disconnect vacuum hose to the vacuum switch. A click should be heard at the 2nd fuel cut solenoid. If so, system is working properly. If not, test switch and solenoid valve.

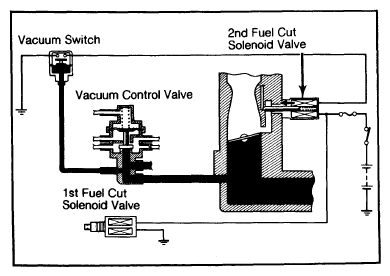

Fig 1: Deceleration Fuel Cut System (Federal Tercel)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
