Choke Unloader

Open primary throttle valve. Insert angle gauge. Bend primary throttle arm to obtain 50° angle between choke valve and bore. See Fig 1.

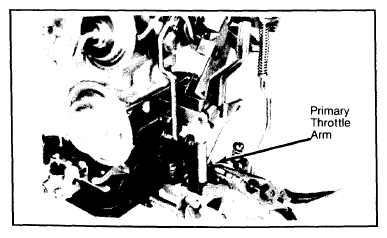

Fig 1: Choke Unloader & Secondary Touch Adjustment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Bend primary throttle arm to adjust.
