Main Relay (Computer/Fuel System): Locations

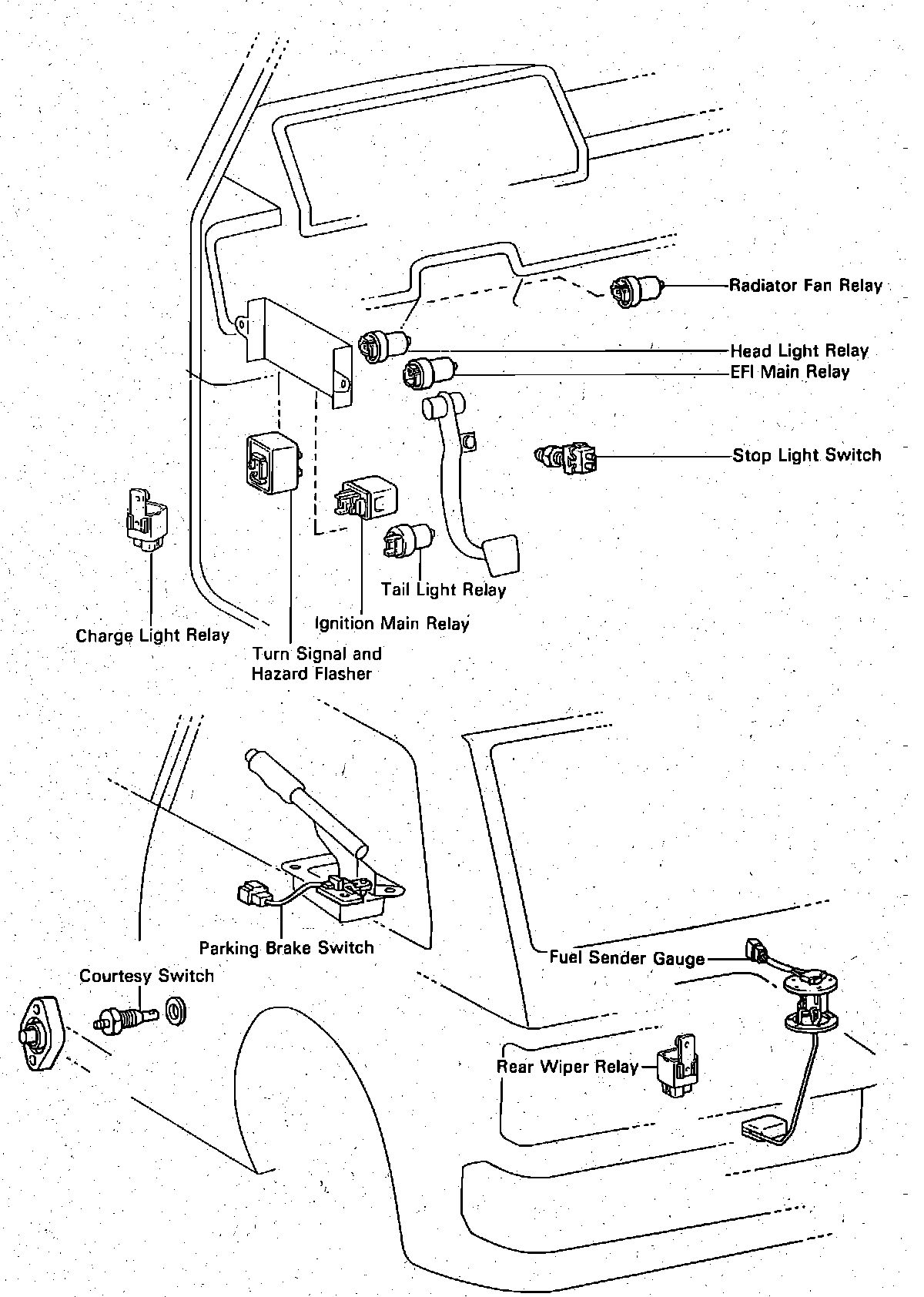

Passenger & Luggage Compartment Switch & Relay Locations.:

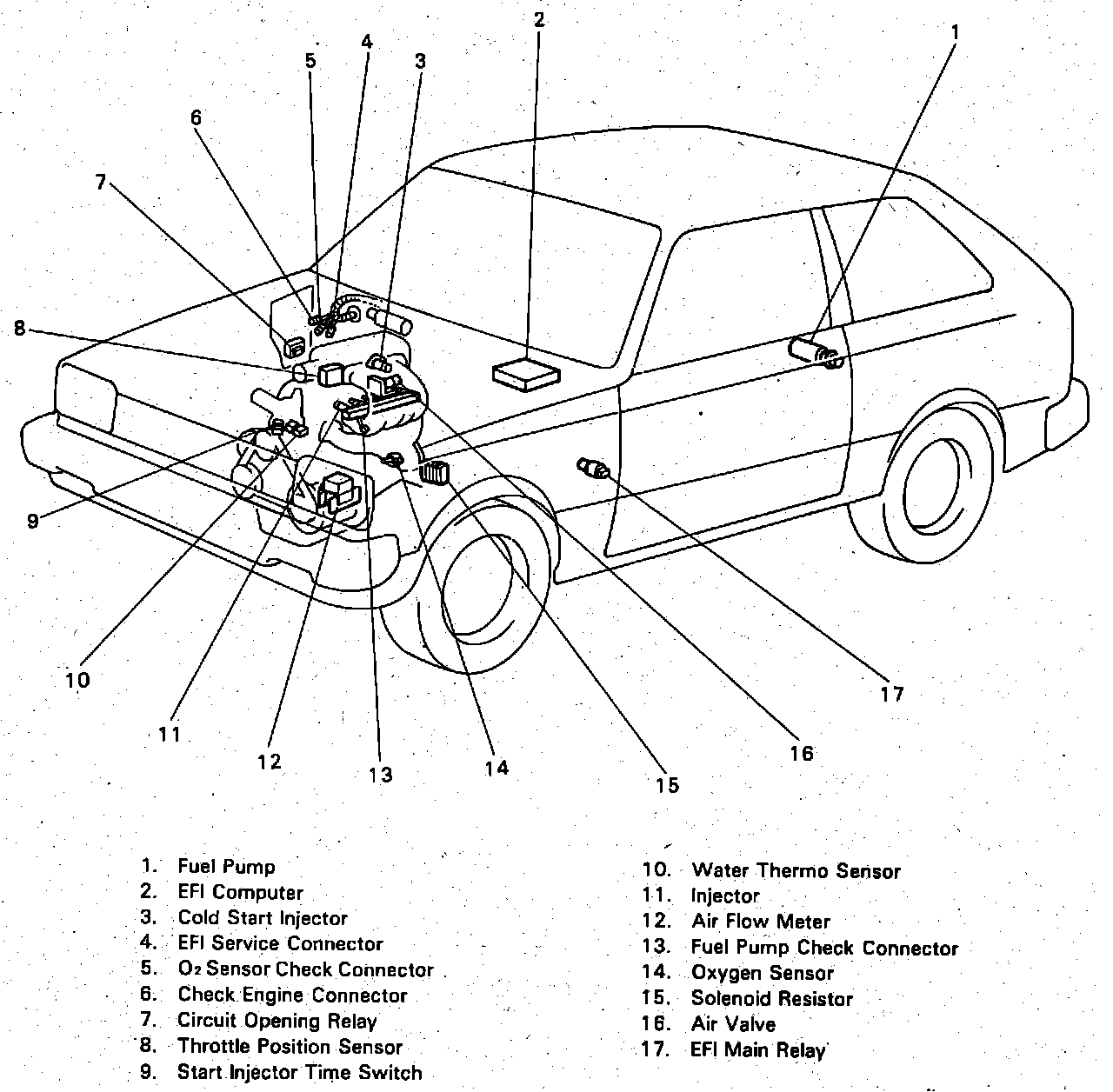

Electronic Fuel Injection Component Locations.:




Behind LH Side Kick Panel

Applicable to: 1981-82 Models
